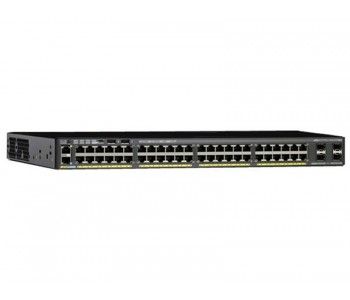

Cisco WS-C2960X-48FPD-L Catalyst 2960-X 48 GigE PoE 740W 2x10G SFP - Usado garantia 12 Meses

Especificaciones - WS-C2960X-48FPD-L

Enclosure type

Rack-mountable - 1U

Ports

48 x 10/100/1000 + 2 x 10G SFP+

Available PoE Power

740W

Forwarding bandwidth(Gbps)

108Gbps

Maximum stacking number

8

Stack Bandwidth

80G

Forwarding Performance

130.9Mpps

Switching bandwidth

216Gbps

Maximum active VLANs

1023

MAC Address Table Size

16K (default)

CPU

APM86392 600MHz dual core

RAM

256 MB

Flash Memory

64 MB

Status Indicators

Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Stacking cable

Optional

Power Redundancy

Option (PWR-RPS2300)

Voltage range (Auto)

110V-240V

Power Consumption Operational

0.89KVA

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

14.5 Inches (36.8 cm)

Height

1.75 Inches (4.5 cm)

Weight

12.9 lb (5.8 Kg)

Package Weight

23.48 lb (10.65 Kg)

Rack Mounting Kit

optional

 MTBF in hours

233,370

Compliant Standards

 IEEE 802.1D Spanning Tree Protocol
  IEEE 802.1p CoS Prioritization
  IEEE 802.1Q VLAN
  IEEE 802.1s
  IEEE 802.1w
  IEEE 802.1X
  IEEE 802.1ab (LLDP)
  IEEE 802.3ad
  IEEE 802.3af and IEEE 802.3at
  IEEE 802.3ah (100BASE-X single/multimode fiber only)
  IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

  IEEE 802.3 10BASE-T
  IEEE 802.3u 100BASE-TX
  IEEE 802.3ab 1000BASE-T
  IEEE 802.3z 1000BASE-X
  RMON I and II standards
  SNMP v1, v2c, and v3
  IEEE 802.3az
  IEEE 802.1ax

System software / license

System software

IOS LAN BASE

license

NERGY-MGT-100-K9, EW-DO-100-DE

features

Jumbo Frames

VLANS

Voice Vlan

VTPv2

CDPv2

LLDP

802.3ad LACP

PVST/PVST+

802.1W/802.1S

Port Fast/Uplink Fast

port CoS Trust and Override

Scheduling

Priority Queuing

Configure CoS Priority Queues

Weighted Tail Drop

DSCP transparency

Network security

SSH, SSL and SCP

RADIUS and TACACS+

SNMPv3 crypto

802.1x

802.1x Accounting / MIB

802.1x w/ port security

802.1x w/Voice VLAN

802.1x Guest VLAN

802.1x VLAN assignment

802.1x MAC-Auth Bypass

BPDU/Root Guard

Port Security

Private VALN Edge

Storm Control

Block unknown unicast and multicast

IGMP Snooping

IGMP Filter/Throttle

Management and Troubleshooting

Auto-MDOX

TDR

UDLD

IP SLA Responder

layer 2 / IP Traceroute

SPAN

RSPAN

Express Setup

Device Manager

Cisco Network Assistant

Smartports + Advisor

Troubleshooting Advisor

Drag-and-drop Cisco IOS Upgrade

IP Address DHCP

Autoinstall with saved configuration

Configuration Replace

DHCP Auto Image Upgrade

DHCP Port Based Allocation

Error Disable MIB

Environmental Ranges

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF

(-5ºC to 45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF

(-5ºC to 40ºC)

Short-term exception at sea level*

23ºF to 131ºF

(-5ºC to 55ºC)

Short-term exception up to 5000 feet (1500 m)*

23ºF to 122ºF

(-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)*

23ºF to 113ºF

(-5ºC to 45ºC)

Short-term exception up to 13,000 feet (4000 m)*

23º to 104ºF

(-5ºC to 40ºC)

Storage temperature up to 15,000 feet (4573 m)

-13º to 158ºF

(-25º to 70ºC)

Operating altitude

Up to 10,000 Feet

(Up to 3000 Meters)

Storage altitude

Up to 13,000

(Up to 4000 Meters)

Operating relative humidity

10% to 95% noncondensing

Storage relative humidity

10% to 95% noncondensing
